Zeichnen von Zahnrädern

Alles zum Thema Technisches Zeichnen.

Zeichnen von Zahnrädern

Beitragvon Extra am Sa 18. Sep 2010, 20:30

Hallo,

ich hätte eine dringende Frage zur Bemaßung und Zeichnung von Zahnrädern. Bei der Darstellung eines Zahnrades zeichnet man ja normal den Kopfkreis und den Teilkreis (hier meine erste Frage wie kommt man auf den Teilkreis?, ist das einfach nur die Hälfte vom Zahnzapfen).
Zur Bemaßung: Die Form der Zapfen variiert ja, wie vermerke ich ob der Zapfen jetzt spitz oder flach ist oder flach oder rund zulaufend ist?

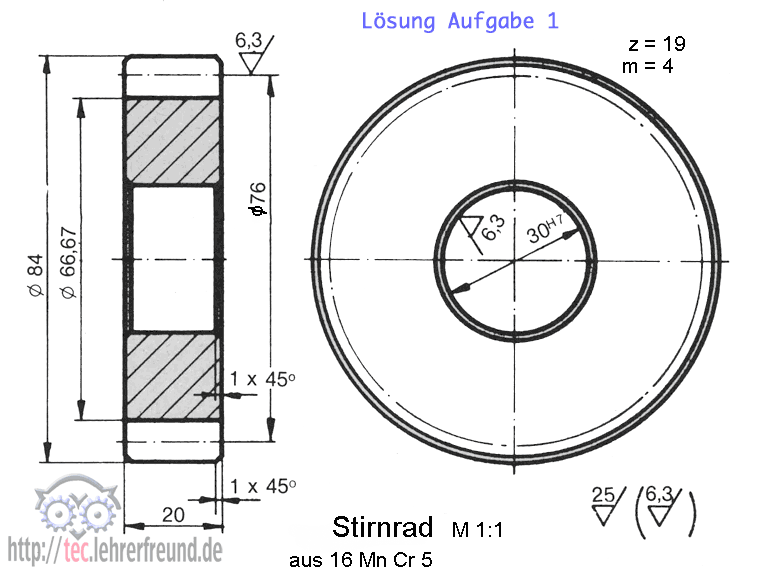

Es wäre ja hier analog dieser Zeichnung oder?
http://www.lehrerfreund.de/xinha/plugin ... fgabe1.png

Vielen lieben Dank

lg

Martin
Extra

Beiträge: 1
Registriert: Sa 18. Sep 2010, 20:22

Re: Zeichnen von Zahnrädern

Beitragvon LockeDerBoss am Di 26. Okt 2010, 21:09

(hier meine erste Frage wie kommt man auf den Teilkreis?, ist das einfach nur die Hälfte vom Zahnzapfen)


Auf den Teilkreis kommt man mit der Formel : d = m * z (TK-Durchm. = Modul * Zähnezahl)

Ich habe es Anhand deiner verlinkten Zeichnung nochmal zusammengefasst.

Zur Bemaßung: Die Form der Zapfen variiert ja, wie vermerke ich ob der Zapfen jetzt spitz oder flach ist oder flach oder rund zulaufend ist?
Es wäre ja hier analog dieser Zeichnung oder?


Dazu kann ich dir leider keine Informationen geben.


Die Informationen hab ich aus dem Tabellenbuch genommen (Tabellenbuch Metall; Europa Verlag; 44. Auflage; 2008), was für solche Zwecke eigentlich immer zur Hand sein sollte.
Auch bei der Arbeit hab ich mindestens 1 Tabellenbuch rumliegen^^

bitteschön...

ich hoffe ich konnte helfen.

MFG Locke
LockeDerBoss

Beiträge: 2
Registriert: Do 21. Okt 2010, 11:48
